TECHNICAL DATA

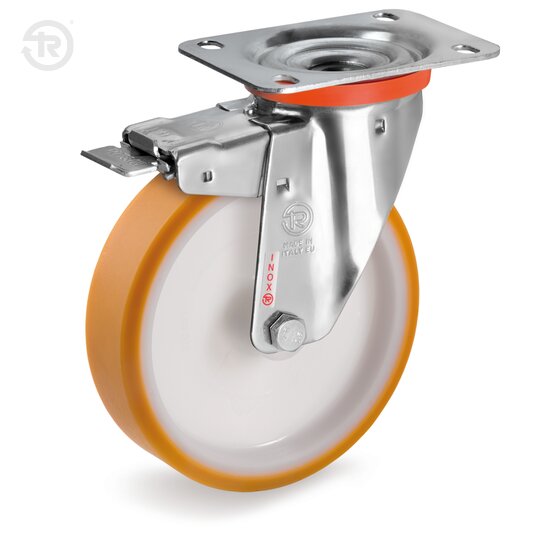

TR polyurethane tread; hardness 92+/-3 Shore A. Polyamide 6 centre.
Swivel top plate bracket type NLX. The plate, the ball rice ring and the fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of stainless steel with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted. The front brake is necessary to lock wheel and top plate rotation.
Suitable for indoor environments, also in presence of medium-harsh chemical agents, alcohol, glycol and water. They are suitable for industrial environments. Not recommended in areas with strong organic acids and mineral acids.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 0 | 5 | |||||||
| 100 | 0 | 4,5 | 8 | ||||||
| 125 | 0 | 4,2 | 7 | ||||||
| 150 | 0 | 2,5 | 4 | 6 | 8 | ||||
| 175 | 0 | 1,5 | 3,7 | 5,5 | 7,5 | ||||
| 200 | 0 | <1 | 3,5 | 5 | 8,5 | 11 | 17 | ||
| 250 | 0 | <1 | 3 | 4 | 5 | 10 | 13 | 16 | 22 |
