TECHNICAL DATA
Monolithic wheels in polyamide 6

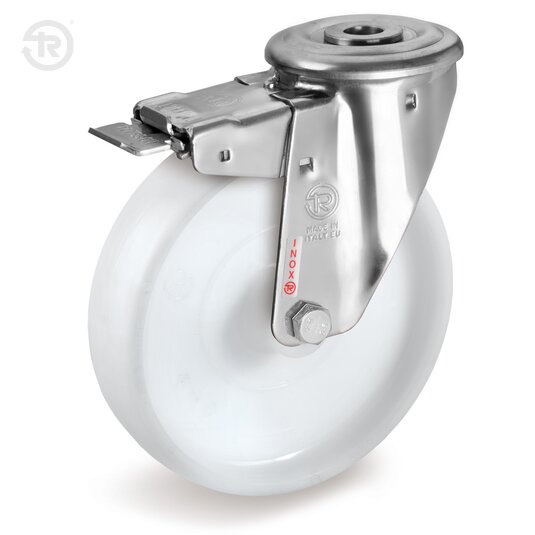

Swivel bracket type NLX. The plate,ball race ring and fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of stainless steel. The king pin is integral with top plate and duly rivetted. The front brake is necessary to lock wheel and top plate rotation.
Designed for industrial environments, even in presence of aggressive chemical substances. Not recommended in areas with strong organic acids and concentrated mineral acids.
Suitable only for smooth and compact floors. Not suited for areas with obstacles.
Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.
| Diameter | Width | 100 | 200 | 300 | 400 | 500 | 700 | 1000 | 1200 |
|---|---|---|---|---|---|---|---|---|---|
| 65 | 0 | 5,5 | |||||||
| 80 | 0 | 4 | |||||||
| 100 | 0 | 3,5 | 6 | 9 | |||||
| 125 | 0 | 2,5 | 5 | 6 | 8 | ||||
| 150 | 0 | 1 | 2,5 | 6 | 8 | 10 | |||
| 175 | 0 | <1 | 2 | 5,5 | 7 | 9 | |||
| 200 | 0 | <1 | 1,8 | 4,7 | 5,8 | 6,5 | 7,8 | ||
| 250 | 0 | <1 | 1,5 | 4 | 4,5 | 6 | 8 | 12 | 16 |
