Wheels and castors for food processing industries
Wheels, castors and accessories for trolleys used in internal industrial logistics
Castors for scaffoldings
Rollers, drive wheels and stabilizer wheels for pallet trucks
Compact castors for AGVs, AMRs and robotic systems
TECHNICAL DATA
Monolithic wheels in polyamide 6

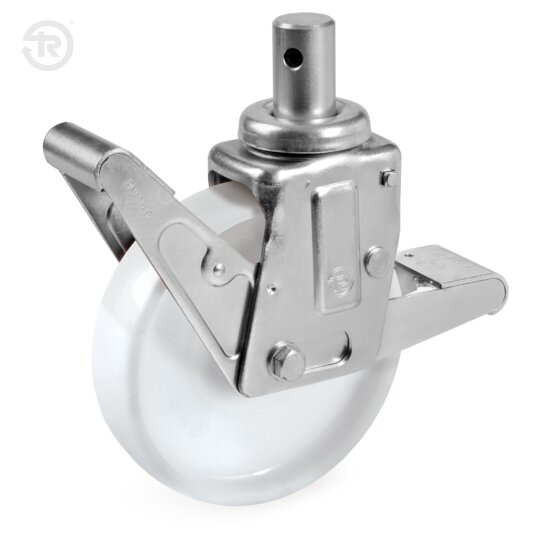

Swivel bracket with stem for mobile scaffoldings. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish. In brackets for wheels diameter 125 and 150, the swivel actions are made of a grease-lubrificated double ball raceways. In brackets for wheels diameter 200, the swivel actions are made of a single direction axial bearing and a grease-lubrificated single ball raceway. In brackets for wheels diameter 150 and 200, the king pin is made of an unthreaded stem in steel and nut locked by mechanical deformation. For brackets diameter 125, the king pin is cold-headed unthreaded stem.
Designed for industrial environments, even in presence of aggressive chemical substances. Not recommended in areas with strong organic acids and concentrated mineral acids.
Suitable only for smooth and compact floors. Not suited for areas with obstacles.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 200 | 300 | 400 | 500 | 700 | 1000 | 1200 |
|---|---|---|---|---|---|---|---|---|---|
| 65 | 0 | 5,5 | |||||||
| 80 | 0 | 4 | |||||||
| 100 | 0 | 3,5 | 6 | 9 | |||||
| 125 | 0 | 2,5 | 5 | 6 | 8 | ||||
| 150 | 0 | 1 | 2,5 | 6 | 8 | 10 | |||
| 175 | 0 | <1 | 2 | 5,5 | 7 | 9 | |||
| 200 | 0 | <1 | 1,8 | 4,7 | 5,8 | 6,5 | 7,8 | ||
| 250 | 0 | <1 | 1,5 | 4 | 4,5 | 6 | 8 | 12 | 16 |
