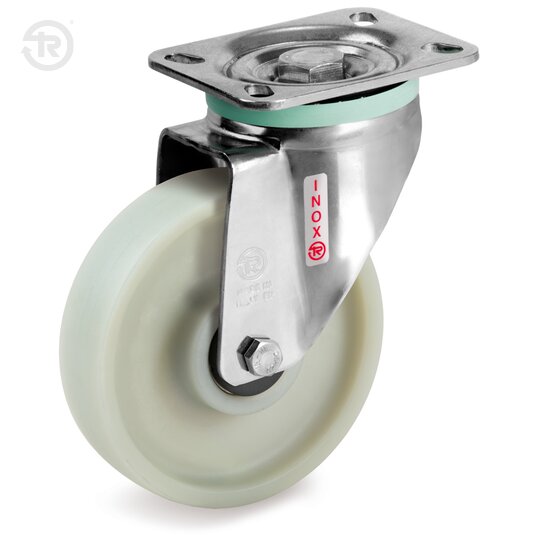

TR-68FV-NLX
Wheels with stainless steel standard duty brackets

Polyamide 6 solid wheels



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Monolithic wheels in polyamide 6 charged with glass fiber

Bracket description

Bracket description

Swivel top plate bracket type NLX. The plate, the ball race ring and the fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of stainless steel with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted.

Environments of use

Environments of use

Suitable for industrial and institutional environments, also in presence of humidity and chemical agents.

verde
Weak acids
giallo
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
giallo
Strong bases
verde
Hydrocarbons
giallo
Solvents
Floors

Floors

Suitable only for smooth and compact floors. Not suited for areas with obstacles.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.

DiameterWidth100150200250300350
1000<11,21,52
1250<1<11,11,51,82,2
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
