TR-69-EP
Wheels with extra-heavy duty brackets

Cast iron solid wheel



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Cast iron solid wheel.

Bracket description

Bracket description

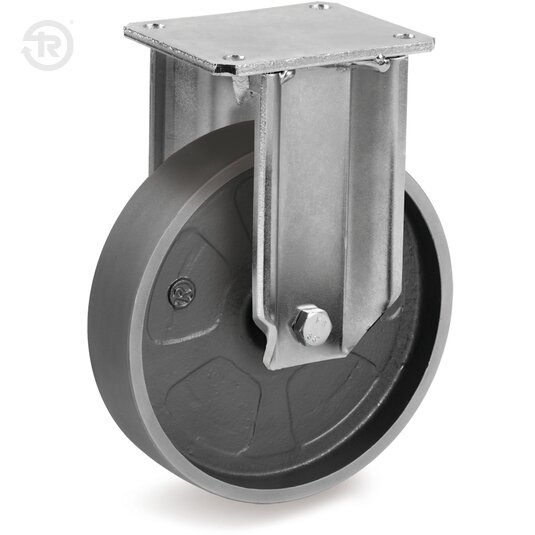

Fixed bracket type EP. The fork is made of forged steel zinc plated finish.

Environments of use

Environments of use

Designed for industrial environments, even in presence of medium-harsh chemical agents. Not recommended in humid environments and in presence of strong organic acids and concentrated mineral acids.

giallo
Weak acids
rosso
Strong acids
giallo
Water
giallo
Alcohol
giallo
Weak bases
giallo
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable only for smooth and compact floors. Not suited for areas with obstacles.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
no piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth10030050070010001400
10030<15,615
10040<14,311,2
1250<13,27,614
1500<12,54,77,412,2
2000<11,73,55,810,318
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
