TECHNICAL DATA

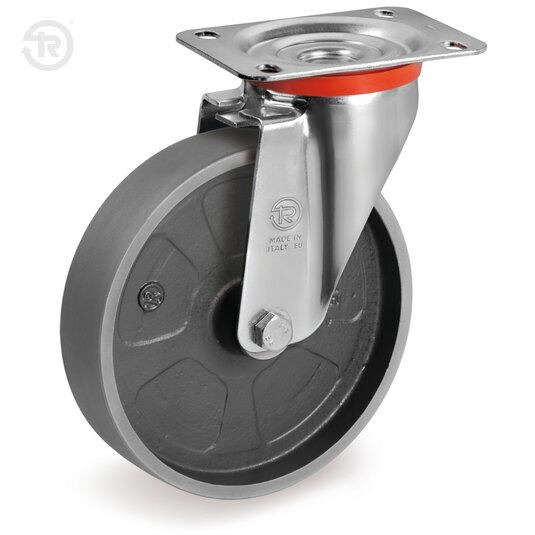

Cast iron solid wheel.
Swivel top plate bracket type NL. The plate, the ball race ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted.
Designed for industrial environments, even in presence of medium-harsh chemical agents. Not recommended in humid environments and in presence of strong organic acids and concentrated mineral acids.
Suitable only for smooth and compact floors. Not suited for areas with obstacles.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 300 | 500 | 700 | 1000 | 1400 |
|---|---|---|---|---|---|---|---|
| 100 | 30 | <1 | 5,6 | 15 | |||
| 100 | 40 | <1 | 4,3 | 11,2 | |||
| 125 | 0 | <1 | 3,2 | 7,6 | 14 | ||
| 150 | 0 | <1 | 2,5 | 4,7 | 7,4 | 12,2 | |
| 200 | 0 | <1 | 1,7 | 3,5 | 5,8 | 10,3 | 18 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
