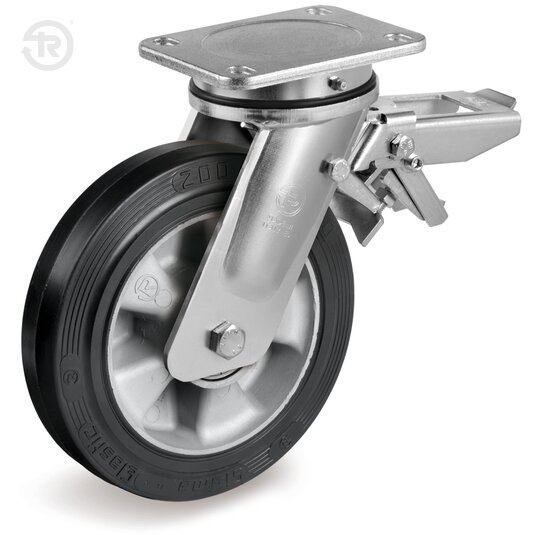

TR-72AL-EEMHD
Wheels with electrowelded brackets

Sigma Elastic rubber tread, aluminium centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Sigma Elastic rubber tread; hardness 70 +/-3 Shore A. Aluminium centre.

Bracket description

Bracket description

Swivel top plate bracket type EE HD, with a plate made of forged steel with integrated pin, a fork with two drawn sides electrowelded to the flange, swivel actions made of an axial ball bearing an a taper roller bearing, lubricator and nut anti-loosening system. Rear adjustable brake: adjustment of the brake setting alters product braking efficiency.

Environments of use

Environments of use

Industrial environments, even in presence of humidity. Not suitable in presence of strong acids and solvents.

verde
Weak acids
rosso
Strong acids
giallo
Water
verde
Alcohol
giallo
Weak bases
giallo
Strong bases
giallo
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth100200300400500
10003
125402,55
16001,83,55
18002,346
200012,456,59
250012,456,59
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
