TECHNICAL DATA

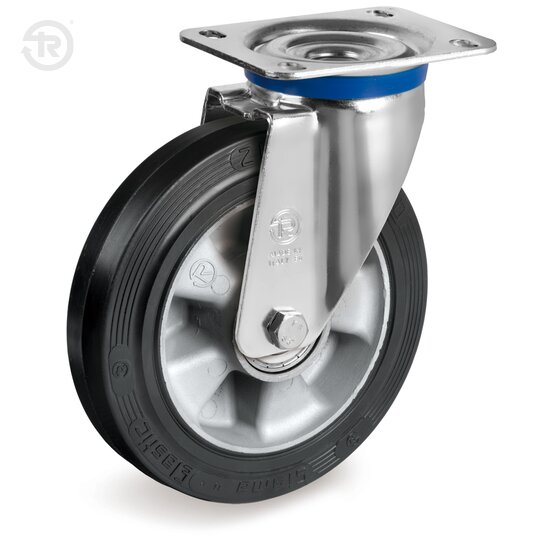

Sigma Elastic rubber tread; hardness 70 +/-3 Shore A. Aluminium centre.
Swivel top plate bracket. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with the top plate and duly rivetted.
Industrial environments, even in presence of humidity. Not suitable in presence of strong acids and solvents.
Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 200 | 300 | 400 | 500 |
|---|---|---|---|---|---|---|
| 100 | 0 | 3 | ||||
| 125 | 40 | 2,5 | 5 | |||
| 160 | 0 | 1,8 | 3,5 | 5 | ||
| 180 | 0 | 2,3 | 4 | 6 | ||
| 200 | 0 | 1 | 2,4 | 5 | 6,5 | 9 |
| 250 | 0 | 1 | 2,4 | 5 | 6,5 | 9 |
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
