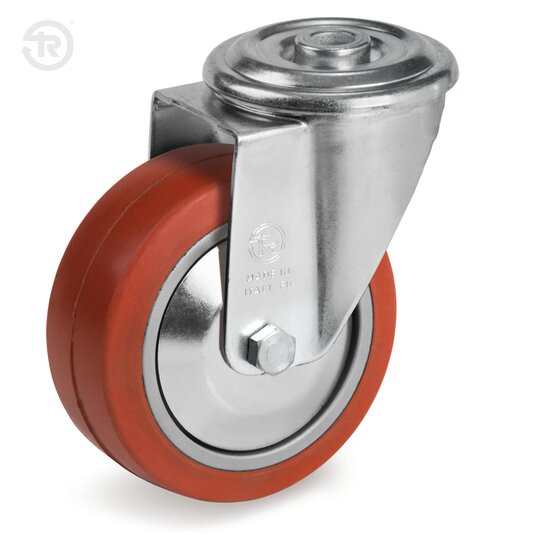

TR-72GS-NL
Wheels with standard duty brackets

Silicone rubber tread, aluminium centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Red non-staining silicone rubber wheels, hardness 80+/-5 Shore A, aluminium centre.

LOAD CAPACITY and SMOOTHNESS: 80 daN at room temperature, 40 daN at 250°C

Bracket description

Bracket description

Swivel bracket with bolt hole type NL. The plate,ball race ring and fork are of pressed steel zinc plated finish; swivel actions: double ball greased race. The king pin is integral with top plate and duly rivetted.

Environments of use

Environments of use

Suitable for industrial and institutional environments. They are resistant to medium harsh chemical agents and humidity. Not recommended in areas with strong acids and oils.

verde
Weak acids
rosso
Strong acids
verde
Water
giallo
Alcohol
giallo
Weak bases
rosso
Strong bases
giallo
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth5075100
1000<14
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
