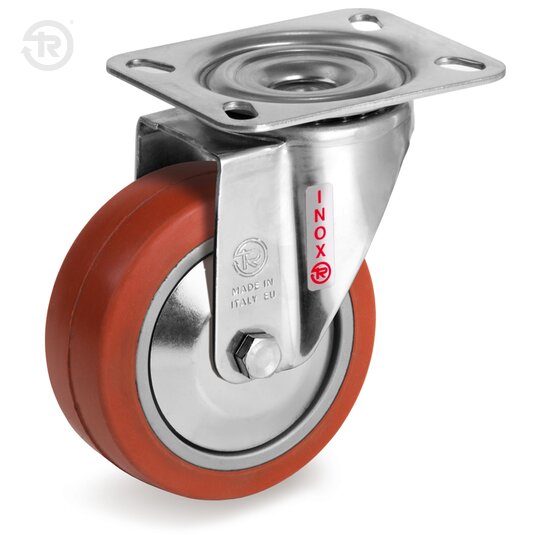

TR-72GS-NLX
Wheels with stainless steel standard duty brackets

Silicone rubber tread, aluminium centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Red non-staining silicone rubber wheels, hardness 80+/-5 Shore A, aluminium centre.

LOAD CAPACITY and SMOOTHNESS: 80 daN at room temperature, 40 daN at 250°C

Bracket description

Bracket description

Swivel top plate bracket type NLX. The plate, the ball race ring and the fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of stainless steel. The king pin is integral with top plate and duly rivetted.

Environments of use

Environments of use

Suitable for industrial and institutional environments. They are resistant to medium harsh chemical agents and humidity. Not recommended in areas with strong acids and oils.

verde
Weak acids
rosso
Strong acids
verde
Water
giallo
Alcohol
giallo
Weak bases
rosso
Strong bases
giallo
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.

DiameterWidth5075100
1000<14
