TECHNICAL DATA

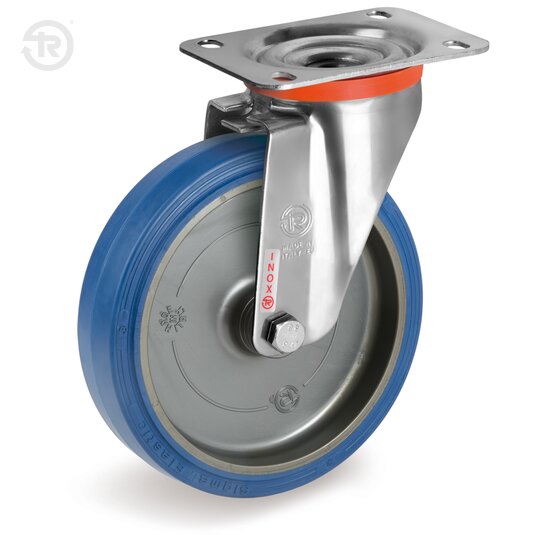

Non-marking blu elastic rubber wheels; hardness 70 Shore A. Polyamide 6 centre.
Swivel bracket type NLX. The plate,ball race ring and fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of stainless steel with dust protection seal made of polyethilene.. The king pin is integral with top plate and duly rivetted.
Designed for industrial environments, even in presence of medium-harsh chemical agents. Not suitable in presence of organic, aromatic solvents, chlorinated substances and hydrocarbons.
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 50 | 100 | 150 | 200 | 300 | 400 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | 2 | 5 | 8 | |||
| 125 | 0 | 1,8 | 3 | 5 | 7 | ||
| 160 | 0 | 1 | 2 | 3 | 5 | 8,5 | |
| 180 | 0 | <1 | 1 | 2 | 3 | 5,5 | |
| 200 | 0 | <1 | <1 | 1 | 1,7 | 3,5 | 6,5 |
