TECHNICAL DATA

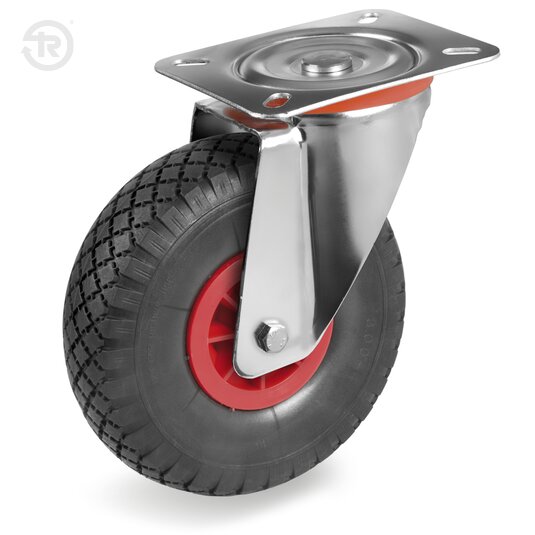

Tyre: expanded polyurethane foam, without inner tube. Centre: polypropylene.
Swivel top plate bracket type NL. The plate, the ball race ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted.
Suitable for industrial and outdoor environments, also in presence of humidity and medium-harsh chemical agents. Not suitable in presence of organic solvents, chlorinated substances, hydrocarbons and mineral oils..
It is functional on all type of floors and especially on uneven floors and soft floor surfaces such as grass, as well as on floor with obstacles and with chips. Also suitable on sandy base.
Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.
