DADOS TÉCNICOS
Revestimento de poliuretano TR-Roll, núcleo de poliamida 6

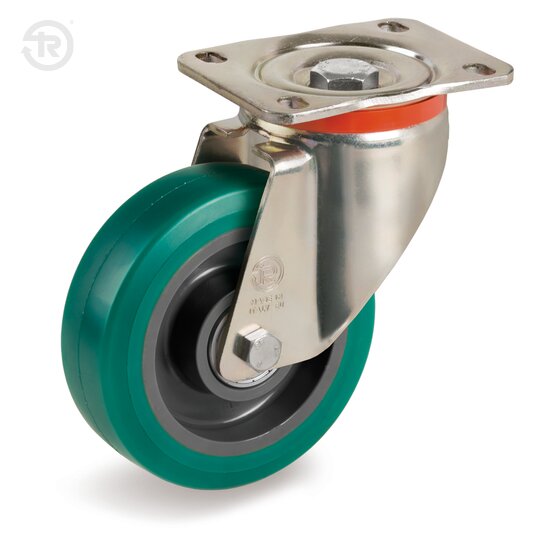

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of polyamide 6.
Swivel top plate bracket type P. The plate, the ball race ring and the fork are made of pressed yellow galvanised steel plate; swivel actions: double ball greased race with dust protection seal made of polyamide 6. The king pin is made of steel bolt series 8.8 and nut.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.
Para cada carga e diâmetro, a tabela indica a força (em daN) necessária para empurrar ou puxar uma única roda a uma velocidade constante de 4 km/h em piso liso. Para a movimentação manual de um carrinho de 4 rodas, escolher diâmetros que resultem em valores 5 daN; para movimentação frequente, escolher valores 3 daN.
| Diâmetro | largura | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|---|
| 100 | 0 | <1 | 1 | 2 | ||||
| 125 | 0 | <1 | <1 | 1,5 | 2 | 2,5 | ||
| 160 | 0 | <1 | <1 | 1 | 1,5 | 1,8 | 2,2 | 2,6 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
