TR-62-NL-M

Wheels with standard duty brackets and medium duty brackets

TR-Roll polyurethane tread, high thicksness, aluminium centre

TR-62-SRP-NL

TR-Roll polyurethane wheels with high thickness, swivel castor NL

TR-62-SF-NL

TR-Roll polyurethane wheels with high thickness, fixed castor NL-M

TR-62-SRP-NL-FR

TR-Roll polyurethane wheels with high thickness, swivel castor NL, brake

TR-62AL-SRP-NL-FRE

High-Thickness TR-Roll Polyurethane Wheels with NL Swivel Castor and Hexagonal Brake

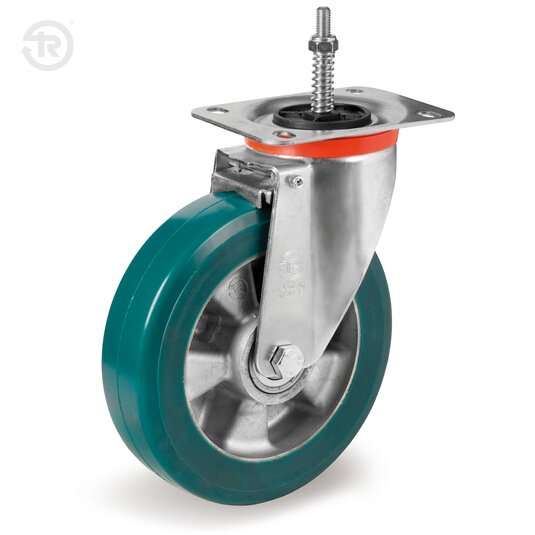

TR-62AL-SRP-NL-FRATT

TR-ROLL Polyurethane Wheels with NL Swivel Castor and Dead Man Brake

TR-62-SRP-M

TR-Roll polyurethane wheels with high thickness, swivel castor M

TR-62-SRP-FR-M

TR-Roll polyurethane wheels with high thickness, swivel castor M, brake

Technical specifications

Scroll horizontally

Wheel description
Bracket description
Environments of use
Floors
Force required to push or tow a wheel

Wheel description

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast aluminium.

Bracket description

Swivel top plate bracket type NL with dead man brake
Swivel top plate bracket type NL. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted. Dead man brake is normally on during non-operating conditions.

Environments of use

Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

Diameter	150	250	350	450	550	700
100	2,5	4
125	1,8	3,2	5
160	1,4	2,8	3,5	4,2	5
180	<1	2	3,2	4,2	4,7
200	<1	1,5	2,8	3,7	4,3	5
250	<1	1,3	2,5	3,7	4,3	5
