TR-62GH-PT

Wheels with medium-heavy duty brackets with hardened ball race grooves

TR-Roll polyurethane tread, cast iron centre

TR-62GH-SRP-PT

TR-Roll polyurethane wheels, swivel castor PT

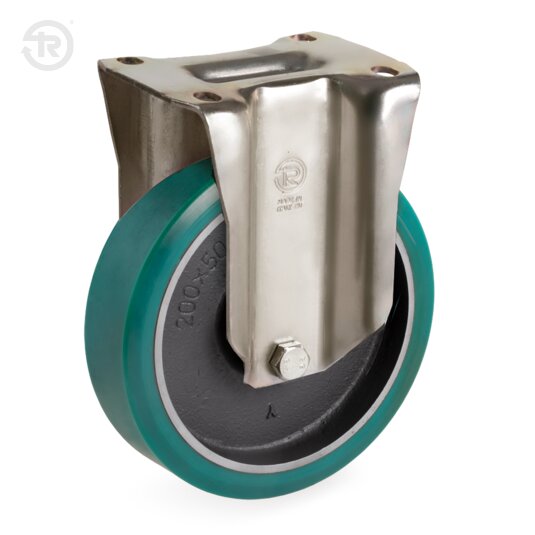

TR-62GH-SF-P

TR-Roll Polyurethane Wheels with EP Fixed Castor

TR-62GH-SRP-PT-FR-REG

TR-Roll polyurethane wheels, swivel castor PT, brake

Technical specifications

Scroll horizontally

Wheel description
Bracket description
Environments of use
Floors
Force required to push or tow a wheel
Accessories

Wheel description

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast iron.

Bracket description

Fixed bracket type P. The fork is made of pressed yellow galvanised steel plate.

Environments of use

Designed for industrial environments, even in in the presence of alcohols, glycols, hydrocarbons.Not recommended in areas with organic acids and mineral acids, base solutions and saturated steam. In case of use in aggressive environments, it is possible to use a protective lacker.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

Diameter	Width	200	400	600	800	1000	1200	1400	1600
200	80	<1	2	3,5	5,5
200	50	<1	2,5	4	6
250	0	<1	1,5	3	5	7	9
300	0	<1	1	2,5	4,5	6	8	10
400	0	<1	<1	1	3	5,5	7	8	10

Accessories

Footguard for NL-M-P-PT brackets

Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
