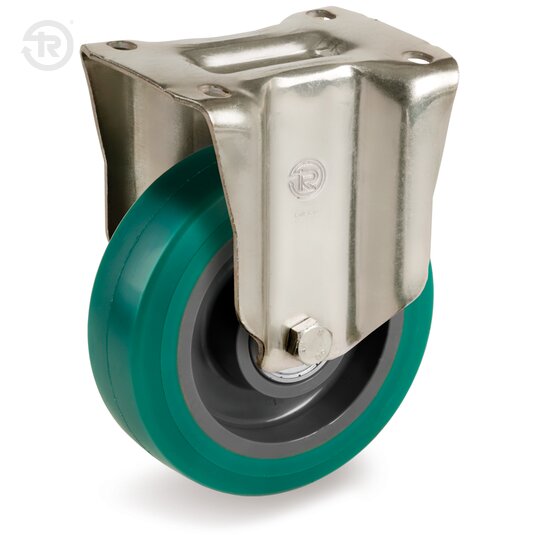

TR-62NY-P
Wheels with medium-heavy duty brackets

TR-Roll polyurethane tread, polyamide 6 centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of polyamide 6.

Bracket description

Bracket description

Fixed bracket type P. The fork is made of pressed yellow galvanised steel plate.

Environments of use

Environments of use

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

verde
Weak acids
rosso
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.

DiameterWidth100150200250300350400
1000<112
1250<1<11,522,5
1600<1<111,51,82,22,6
Accessories

Footguard for NL-M-P-PT brackets

Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
