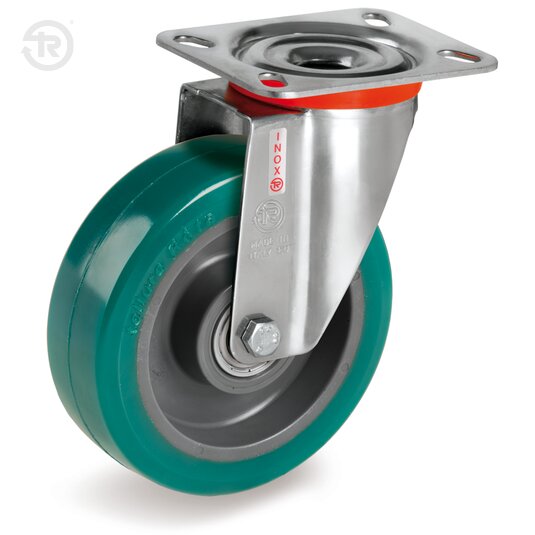

TR-62NY-NLX
Wheels with standard duty stainless steel brackets

TR-Roll polyurethane tread, polyamide 6 centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of polyamide 6.

Bracket description

Bracket description

Swivel top plate bracket type NLX. The plate, the ball race ring and the fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of stainless steel with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted.

Environments of use

Environments of use

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

verde
Weak acids
rosso
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een ​​enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

DiameterWidth100150200250300350400
1000<112
1250<1<11,522,5
1600<1<111,51,82,22,6
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
