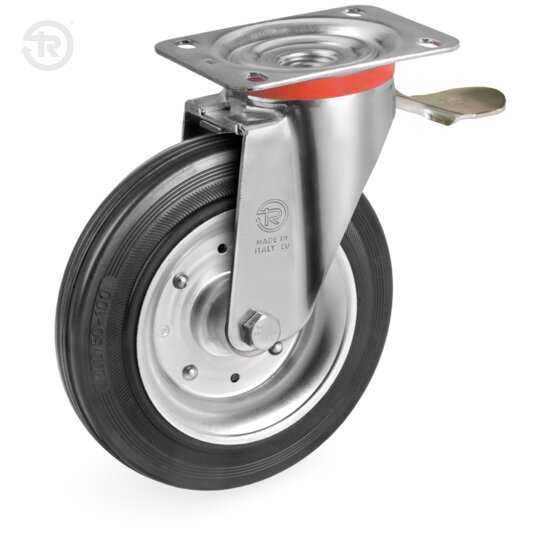

TR-53-NL
Wheels with standard duty brackets

Rubber tread, electrolytically galvanised steel plate discs



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Tyre: black standard rubber, hardness 80 Shore A. Centre: electrolytically galvanised steel plate, made of two riveted discs.

Bracket description

Bracket description

Swivel top plate bracket type NL. The plate, the ball rice ring and the fork are of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted. The rear brake is necessary to lock wheel and top plate rotation.

Environments of use

Environments of use

Suitable for industrial environments, also in presence of humidity. Not suitable in presence of aggressive chemical agents.

giallo
Weak acids
rosso
Strong acids
verde
Water
giallo
Alcohol
giallo
Weak bases
giallo
Strong bases
giallo
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth50100150200250300
8005
12502,56
14002,25,59
1500258
16001,53,57,5
1800136,1
2000135,58,5
2250<12,14,87,511
2500<1246912
2800<123,5579
