TECHNICAL DATA

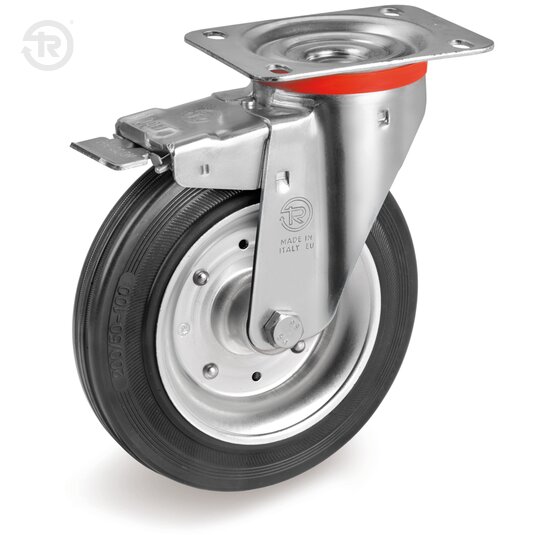

Tyre: black standard rubber, hardness 80 Shore A. Centre: electrolytically galvanised steel plate, made of two riveted discs.
Swivel top plate bracket type NL. The plate, the ball rice ring and the fork are of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted. The front brake is necessary to lock wheel and top plate rotation.
Suitable for industrial environments, also in presence of humidity. Not suitable in presence of aggressive chemical agents.
Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor.
Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.
| Diameter | Width | 50 | 100 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|
| 80 | 0 | 5 | |||||
| 125 | 0 | 2,5 | 6 | ||||
| 140 | 0 | 2,2 | 5,5 | 9 | |||
| 150 | 0 | 2 | 5 | 8 | |||
| 160 | 0 | 1,5 | 3,5 | 7,5 | |||
| 180 | 0 | 1 | 3 | 6,1 | |||
| 200 | 0 | 1 | 3 | 5,5 | 8,5 | ||
| 225 | 0 | <1 | 2,1 | 4,8 | 7,5 | 11 | |
| 250 | 0 | <1 | 2 | 4 | 6 | 9 | 12 |
| 280 | 0 | <1 | 2 | 3,5 | 5 | 7 | 9 |
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
