TECHNICAL DATA

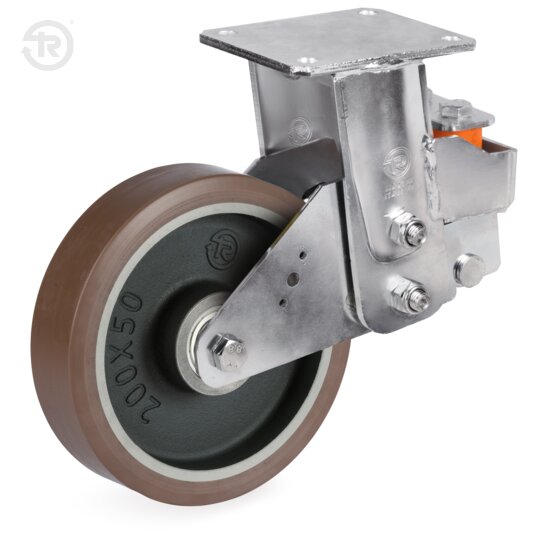

TR-PowerHigh polyurethane tread, cast iron centre
TR-PowerHigh polyurethane tread; hardness 92 +/-3 Shore A. Cast iron centre.
Electrolytically galvanised bracket made of:
-Steel plate
-Deep-drawn legs electrowelded to the plate
-U-shape electrowelded to the legs
-Polyurethane springs
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 150 | 300 | 450 | 600 | 1000 | 1500 | 2000 | 2800 |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 0 | 4 | 10 | ||||||
| 100 | 0 | 3,4 | 7 | ||||||
| 125 | 60 | 3 | 5,8 | 9,9 | 12,5 | ||||
| 125 | 50 | 3 | 5,8 | 9,9 | |||||
| 125 | 38 | 3,1 | 6 | 10,3 | |||||
| 140 | 54 | 3 | 5,8 | 9,9 | 12,5 | ||||
| 150 | 54 | 2,2 | 4,7 | 7,7 | 11,3 | ||||
| 150 | 50 | 2,2 | 4,7 | 7,7 | 11,3 | ||||
| 160 | 50 | 2 | 4,5 | 7,4 | 10,8 | ||||
| 200 | 80 | 1,1 | 3,1 | 4,5 | 6 | 10,3 | 15,3 | ||
| 200 | 50 | 1,5 | 3,4 | 5,4 | 7,6 | 14,4 | |||
| 250 | 80 | <1 | 2,2 | 4 | 5,4 | 9,2 | 14 | ||
| 250 | 60 | <1 | 2,7 | 4,2 | 5,6 | 9,8 | 14,4 | ||
| 300 | 100 | <1 | 1,3 | 3,1 | 4,5 | 7,7 | 11,7 | 14,4 | |
| 300 | 80 | <1 | 1,3 | 3,1 | 4,5 | 7,7 | 11,7 | 14,4 | |
| 300 | 60 | <1 | 2,5 | 4,5 | 6 | 10,3 | 15,5 | ||
| 400 | 100 | <1 | <1 | 1,8 | 2,9 | 6,1 | 9,9 | 11,7 | 18,9 |
