TR-64-FP
TR polyurethane wheels

Without bracket, cast iron centre, with plain bore and key housing



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

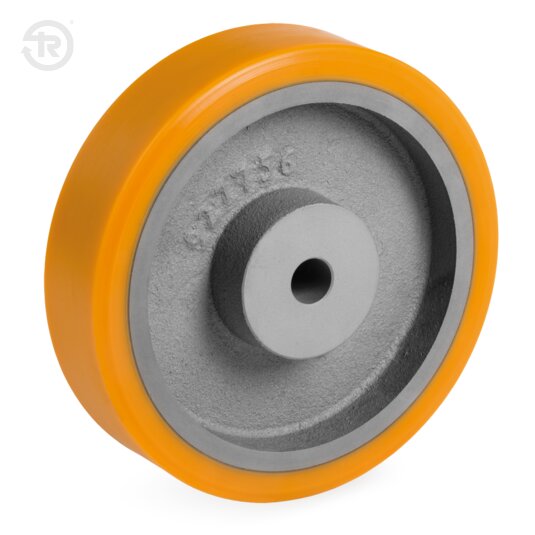

"TR" polyurethane wheels, cast iron centre. These wheels can also be used as drive wheels: the wheel hub is manufactured so that it can be easily reworked to achieve a splin or a key housing.

Environments of use

Environments of use

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

giallo
Weak acids
rosso
Strong acids
giallo
Water
verde
Alcohol
giallo
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.

DiameterWidth1503004506001000150020002800
8004,511
10003,87,7
125603,36,51114
125383,5711,5
125503,36,511
1506024811
150801,83,5610,518
150502,55,28,612,6
160502,358,312
1805024,16,89,7
200501,73,868,516
200801,33,556,711,517
25060134,76,310,916
25080<12,54,5610,315,5
30060<1245,59,615
30080<11,53,558,61316
400100<1<123,26,8111321
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
