TECHNICAL DATA

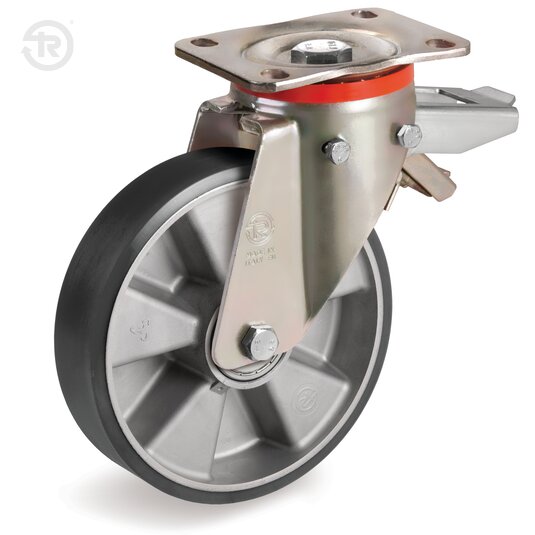

Tyre: ESD TR polyurethane, with electric resistance values 10^9 Ohm (=1GOhm) dark-grey non-marking colour, hardness 90 Shore A, with excellent rolling resistance and elasticity and good resistance to wear and tear. Centre: made of cast aluminium.
Supporto costituito da piastra, anello tenuta sfere e forcella in lamiera d'acciaio zincato giallo elettroliticamente ; organo di rotazione formato da due giri sfere lubrificati a grasso e protezione con anello parapolvere in poliammide 6. Perno centrale composto da vite classe 8.8 e dado. Il freno registrabile consente il bloccaggio della ruota e del supporto.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 150 | 250 | 350 | 450 | 550 | 650 |
|---|---|---|---|---|---|---|---|
| 80 | 0 | 3,2 | |||||
| 100 | 0 | 2,3 | 5,2 | ||||
| 125 | 0 | 1,7 | 4,5 | 6,5 | |||
| 150 | 0 | 1,2 | 3,8 | 6 | 7 | 8 | |
| 160 | 0 | <1 | 3,3 | 5 | 6,5 | 8 | |
| 200 | 0 | <1 | 3 | 4,9 | 6 | 7,8 | 9 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
