TECHNICAL DATA

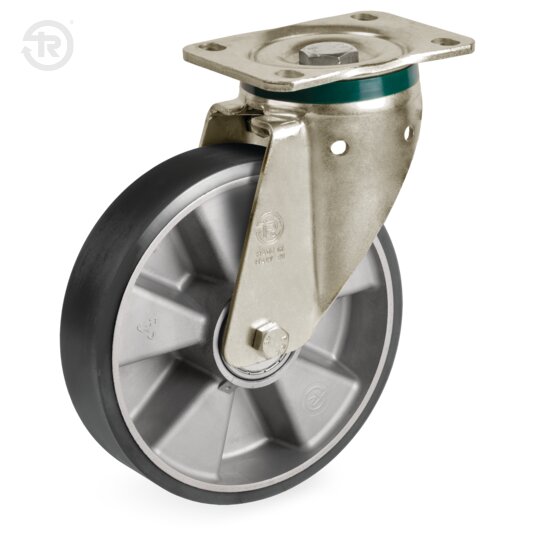

Tyre: ESD TR polyurethane, with electric resistance values < 10^9 Ohm (=1GOhm) dark-grey non-marking colour, hardness 90 Shore A, with excellent rolling resistance and elasticity and good resistance to wear and tear. Centre: made of cast aluminium.
Swivel bracket made with: - Top Plate: yellow galvanised steel plate; Fork: yellow galvanised steel plate; Ball Race Ring: yellow galvanised steel plate; Dust seal: green polyamide 6; Swivel actions: double ball ring with grease lubrication; Ball race: tempered carbon steel; King pin: steel screw, class 8.8 and nut
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
| Diameter | Width | 150 | 250 | 350 | 450 | 550 | 650 |
|---|---|---|---|---|---|---|---|
| 80 | 0 | 3,2 | |||||
| 100 | 0 | 2,3 | 5,2 | ||||
| 125 | 0 | 1,7 | 4,5 | 6,5 | |||
| 150 | 0 | 1,2 | 3,8 | 6 | 7 | 8 | |
| 160 | 0 | <1 | 3,3 | 5 | 6,5 | 8 | |
| 200 | 0 | <1 | 3 | 4,9 | 6 | 7,8 | 9 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
