Technical specifications

Scroll horizontally
Wheel description

Wheel description

High temperature solid thermosetting resin wheel.

Bracket description

Bracket description

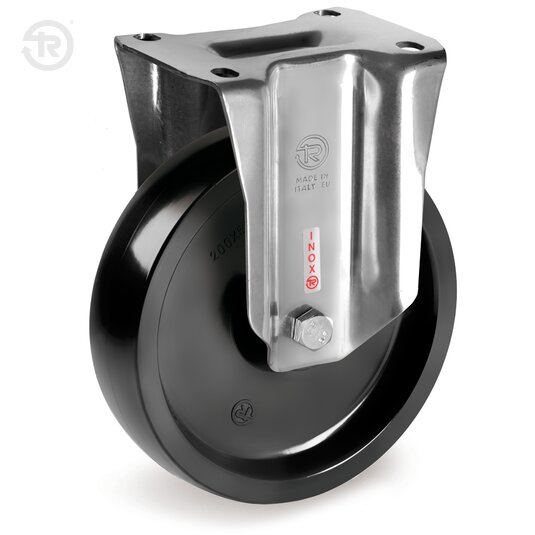

Fixed bracket type NLX. The fork is made of AISI 304 stainless steel.

Environments of use

Environments of use

Suitable for applications in humid environments, where medium-harsh chemicals are present.

verde
Weak acids
rosso
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
rosso
Strong bases
verde
Hydrocarbons
verde
Solvents
Floors

Floors

Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een ​​enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

DiameterWidth100200300400500
8004
10003,78,2
12503711
150025,59
2000146,5912
