Technical specifications

Scroll horizontally
Wheel description

Wheel description

High temperature solid thermosetting resin wheel.

Bracket description

Bracket description

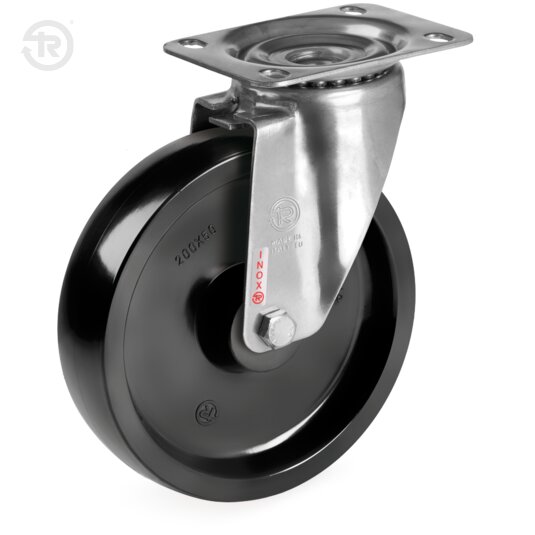

Swivel top plate bracket type NLX. The plate, the ball race ring and the fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of stainless steel. The king pin is integral with top plate and duly rivetted.

Environments of use

Environments of use

Suitable for applications in humid environments, where medium-harsh chemicals are present.

verde
Weak acids
rosso
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
rosso
Strong bases
verde
Hydrocarbons
verde
Solvents
Floors

Floors

Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth100200300400500
8004
10003,78,2
12503711
150025,59
2000146,5912
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
