TR-68-NL-M
Wheels with standard duty brackets and medium duty brackets

Polyamide 6 solid wheels



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Monolithic wheels in polyamide 6

Bracket description

Bracket description

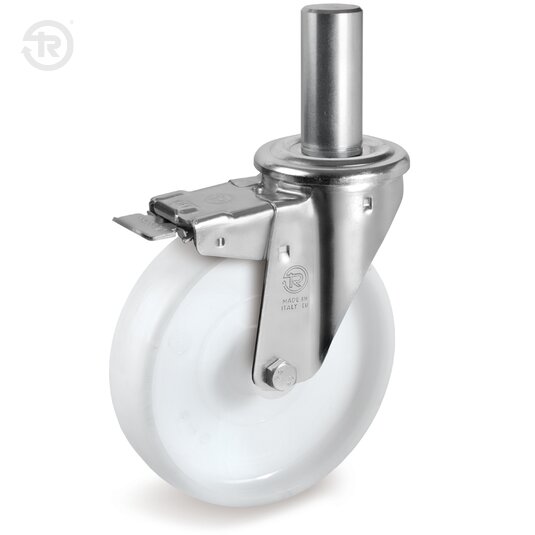

Swivel bracket with bolt hole type NL. The plate,ball race ring and fork are of pressed steel zinc plated finish; swivel actions: double ball greased race. Galvanised steel solid stem. The king pin is integral with top plate and duly rivetted. The front brake is necessary to lock wheel and top plate rotation.

Environments of use

Environments of use

Designed for industrial environments, even in presence of aggressive chemical substances. Not recommended in areas with strong organic acids and concentrated mineral acids.

giallo
Weak acids
rosso
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
giallo
Strong bases
verde
Hydrocarbons
giallo
Solvents
Floors

Floors

Suitable only for smooth and compact floors. Not suited for areas with obstacles.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth10020030040050070010001200
6505,5
8004
10003,569
12502,5568
150012,56810
1750<125,579
2000<11,84,75,86,57,8
2500<11,544,5681216
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
