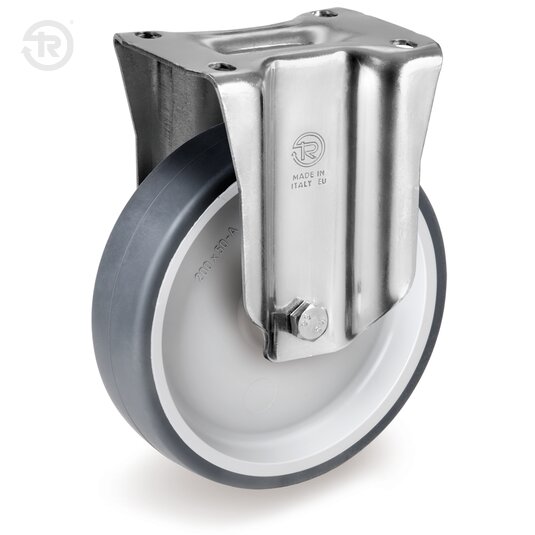

TR-71-NL
Wheels with standard duty brackets

Non-marking thermoplastic rubber tread, polypropylene centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Grey non-marking thermoplastic rubber wheels, hardness 85 Shore A, polypropylene centre

Bracket description

Bracket description

Fixed bracket type NL. The fork is made of pressed steel zinc plated.

Environments of use

Environments of use

Suitable for industrial and institutional environments, also in presence of humidity. Not suitable in presence of organic solvents, chlorinated substances, hydrocarbons and mineral oils.

verde
Weak acids
giallo
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
giallo
Strong bases
verde
Hydrocarbons
giallo
Solvents
Floors

Floors

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth50100150200225
8003,5
10002,25
12501,53,5
15045<123,8
1503512,54,7
2000<11,32,53,95
Accessories

Footguard for NL-M-P-PT brackets

Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times

Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
