TECHNICAL DATA
Grey non-marking thermoplastic rubber wheels, hardness 85 Shore A, polypropylene centre

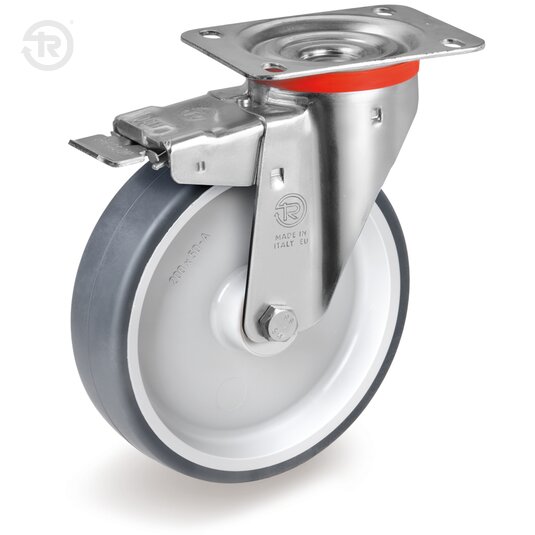

Swivel top plate bracket type NL. The plate, the ball rice ring and the fork are of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted. The front brake is necessary to lock wheel and top plate rotation.
Suitable for industrial and institutional environments, also in presence of humidity. Not suitable in presence of organic solvents, chlorinated substances, hydrocarbons and mineral oils.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 50 | 100 | 150 | 200 | 225 |
|---|---|---|---|---|---|---|
| 80 | 0 | 3,5 | ||||
| 100 | 0 | 2,2 | 5 | |||
| 125 | 0 | 1,5 | 3,5 | |||
| 150 | 45 | <1 | 2 | 3,8 | ||
| 150 | 35 | 1 | 2,5 | 4,7 | ||
| 200 | 0 | <1 | 1,3 | 2,5 | 3,9 | 5 |
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
