Wheels and castors for food processing industries
Wheels, castors and accessories for trolleys used in internal industrial logistics
Castors for scaffoldings
Rollers, drive wheels and stabilizer wheels for pallet trucks
Compact castors for AGVs, AMRs and robotic systems
TECHNICAL DATA

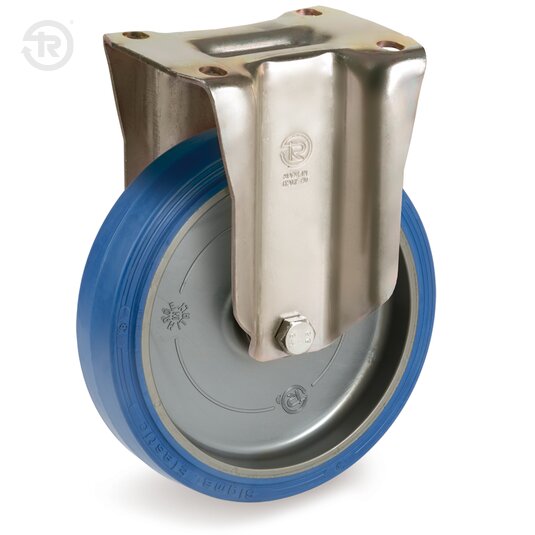

Non-marking blu elastic rubber wheels; hardness 70 Shore A. Polyamide 6 centre.
Fixed bracket type P. The fork is made of pressed yellow galvanised steel plate.
Designed for industrial environments, even in presence of medium-harsh chemical agents. Not suitable in presence of organic, aromatic solvents, chlorinated substances and hydrocarbons.
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 50 | 100 | 150 | 200 | 300 | 400 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | 2 | 5 | 8 | |||
| 125 | 0 | 1,8 | 3 | 5 | 7 | ||
| 160 | 0 | 1 | 2 | 3 | 5 | 8,5 | |
| 180 | 0 | <1 | 1 | 2 | 3 | 5,5 | |
| 200 | 0 | <1 | <1 | 1 | 1,7 | 3,5 | 6,5 |
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
