TECHNICAL DATA

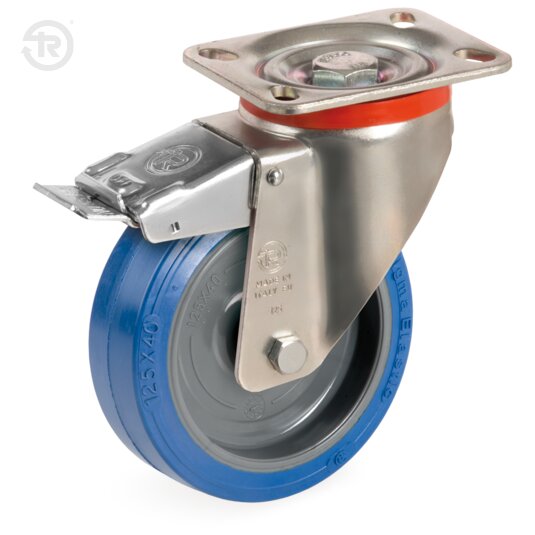

Non-marking blu elastic rubber wheels; hardness 70 Shore A. Polyamide 6 centre.
Swivel top plate bracket type P. The plate, the ball rice ring and the fork are made of pressed yellow galvanised steel plate; swivel actions: double ball greased race with dust protection seal made of polyamide 6. The king pin is made of steel bolt 8.8 and nut series. The adjustable brake locks wheel and top plate rotation.
Designed for industrial environments, even in presence of medium-harsh chemical agents. Not suitable in presence of organic, aromatic solvents, chlorinated substances and hydrocarbons.
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 50 | 100 | 150 | 200 | 300 | 400 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | 2 | 5 | 8 | |||
| 125 | 0 | 1,8 | 3 | 5 | 7 | ||
| 160 | 0 | 1 | 2 | 3 | 5 | 8,5 | |
| 180 | 0 | <1 | 1 | 2 | 3 | 5,5 | |
| 200 | 0 | <1 | <1 | 1 | 1,7 | 3,5 | 6,5 |
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
