TECHNICAL DATA

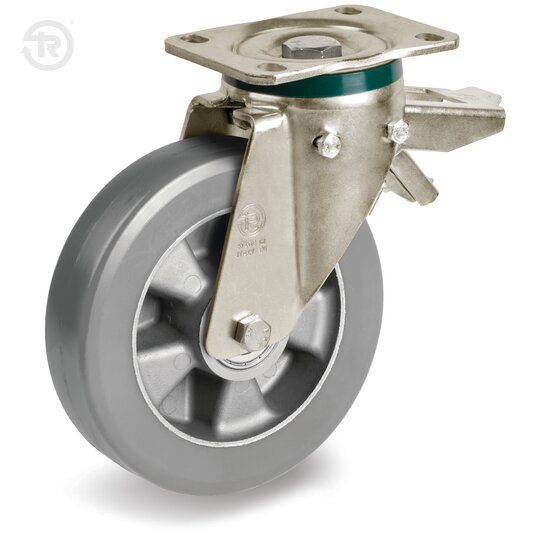

Tyre: very thick ESD TR-Roll polyurethane, with electric resistance values < 10^9 Ohm (=1GOhm) lightgrey non-marking colour, hardness 75 Shore A, with excellent rolling resistance and elasticity and good resistance to wear and tear. Centre: made of cast aluminium.
Swivel bracket made with: - Top Plate: yellow galvanised steel plate; Fork: yellow galvanised steel plate; Ball Race Ring: yellow galvanised steel plate; Dust seal: green polyamide 6; Swivel actions: double ball ring with grease lubrication; Ball race: tempered carbon steel; King pin: steel screw, class 8.8 and nut. Adjustable rear brake.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.
For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
| Diameter | Width | 100 | 200 | 300 | 400 | 500 | 550 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | <1 | 2 | ||||
| 125 | 0 | <1 | 1,7 | 3,1 | |||
| 160 | 0 | <1 | 1,6 | 2,8 | 4,4 | ||
| 200 | 0 | <1 | 1,2 | 2,3 | 3,7 | 5,2 | 6,1 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
