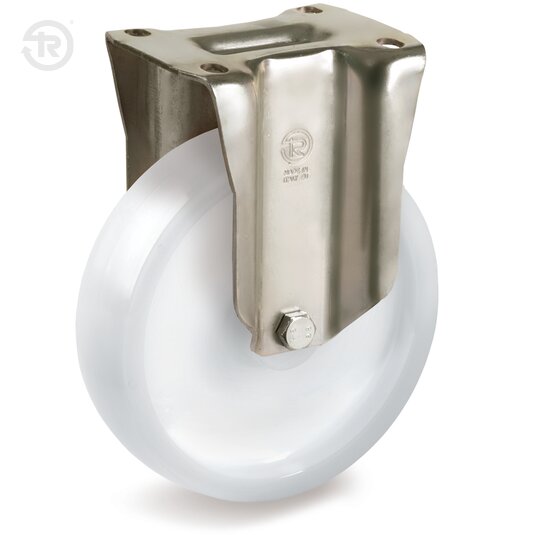

TR-68P-P-PT
Wheels with medium-heavy duty brackets and brackets with hardened ball race grooves

Polyamide 6 solid wheels for heavy-duty loads



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Polyamide 6 solid wheels for heavy loads

Bracket description

Bracket description

Fixed bracket type P. The fork is made of pressed yellow galvanised steel plate.

Environments of use

Environments of use

Designed for industrial environments, even in presence of aggressive chemical substances. Not recommended in areas with strong organic acids and concentrated mineral acids.

verde
Weak acids
giallo
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
giallo
Strong bases
verde
Hydrocarbons
giallo
Solvents
Floors

Floors

Suitable only for smooth and compact floors. Not suited for areas with obstacles.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een ​​enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

DiameterWidth100200300500700900
10002,53,54,5
125452,23,246,5
1253522,83,8
15001,82,33,55,57
20001,21,82,73,45,58
Accessories

Footguard for NL-M-P-PT brackets

Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
