TECHNICAL DATA

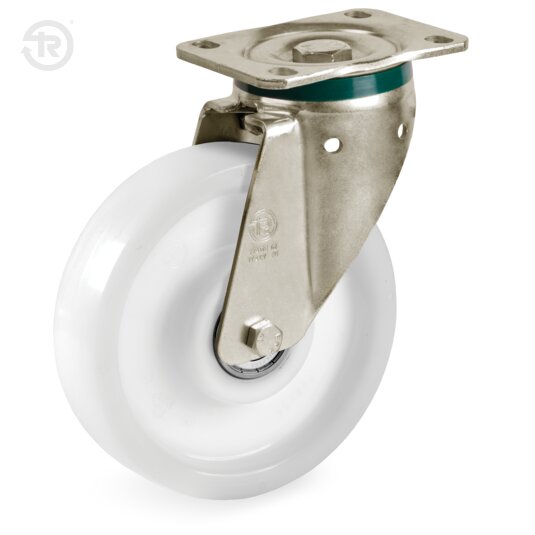

Polyamide 6 solid wheels for heavy loads
Swivel bracket made with: - Top Plate: yellow galvanised steel plate; Fork: yellow galvanised steel plate; Ball Race Ring: yellow galvanised steel plate; Dust seal: green polyamide 6; Swivel actions: double ball ring with grease lubrication; Ball race: tempered carbon steel; King pin: steel screw, class 8.8 and nut
Designed for industrial environments, even in presence of aggressive chemical substances. Not recommended in areas with strong organic acids and concentrated mineral acids.
Suitable only for smooth and compact floors. Not suited for areas with obstacles.
For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
| Diameter | Width | 100 | 200 | 300 | 500 | 700 | 900 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | 2,5 | 3,5 | 4,5 | |||
| 125 | 45 | 2,2 | 3,2 | 4 | 6,5 | ||
| 125 | 35 | 2 | 2,8 | 3,8 | |||
| 150 | 0 | 1,8 | 2,3 | 3,5 | 5,5 | 7 | |
| 200 | 0 | 1,2 | 1,8 | 2,7 | 3,4 | 5,5 | 8 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
