Wheels and castors for food processing industries
Wheels, castors and accessories for trolleys used in internal industrial logistics
Castors for scaffoldings
Rollers, drive wheels and stabilizer wheels for pallet trucks
Compact castors for AGVs, AMRs and robotic systems
TECHNICAL DATA
Polyamide 6 solid wheels for heavy loads

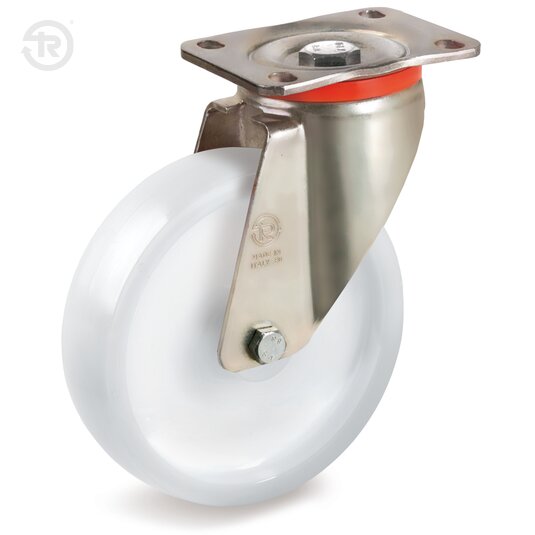

Swivel top plate bracket type P. The plate, the ball rice ring and the fork are made of pressed yellow galvanised steel plate; swivel actions: double ball greased race with dust protection seal made of polyamide 6. The king pin is made of steel bolt series 8.8 and nut.
Designed for industrial environments, even in presence of aggressive chemical substances. Not recommended in areas with strong organic acids and concentrated mineral acids.
Suitable only for smooth and compact floors. Not suited for areas with obstacles.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 200 | 300 | 500 | 700 | 900 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | 2,5 | 3,5 | 4,5 | |||
| 125 | 45 | 2,2 | 3,2 | 4 | 6,5 | ||
| 125 | 35 | 2 | 2,8 | 3,8 | |||
| 150 | 0 | 1,8 | 2,3 | 3,5 | 5,5 | 7 | |
| 200 | 0 | 1,2 | 1,8 | 2,7 | 3,4 | 5,5 | 8 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
