Scaffolding wheel bracket

The scaffolding bracket is a solution specifically designed for use on mobile scaffolds and structures compliant with the UNI EN 1004-1:2021 standard, with a maximum load capacity of 750 daN. It is suitable for applications in the mobile scaffolding sector, where high standards of safety, stability and reliability are required during use at height. The bracket’s structure ensures high load-bearing capacity and controlled movement, contributing to the overall safety of the system under operating conditions defined by the relevant standards.

Construction features of the Scaffolding bracket

1) Plate: electrolytically galvanised steel plate 2) Fork: electrolytically galvanised steel plate 3) Ball race ring: electroplated galvanised steel 4) King pin: stem with acme thread manufactured steel from tube, nut locked by mechanical deformation (different for top plate and solid stem models) 5) Swivel actions: for brackets diam. 125 and 150 mm: grease-lubricated double ball raceways; for brackets diam. 200 mm: single direction axial bearing and a grease-lubricated single ball raceway 6) Dust seal: orange polyethylene

Bracket designed for the specific requirements of the scaffolding sector, regulated by Standard EN 1004-1:2021.

When the brake is actioned, its construction allows eliminating the offset of the wheel by aligning the bracket's swivel axis and the wheel's swivel axis on the same vertical, thus significantly increasing the set's resistance to static loads.

Also available with double pedal (one pedal to lock and one to release)

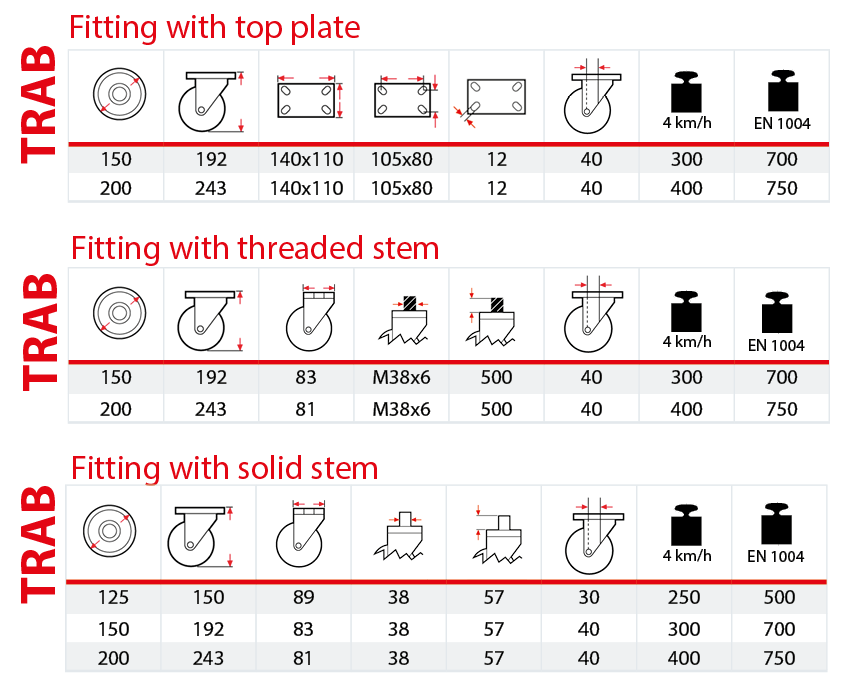

Fittings with wheels

SERIES 60	SERIES 68
