Twin electrowelded EEG HD and EHD industrial wheel bracket

The EEG HD and EHD twin electro-welded brackets are designed for material-handling applications involving extremely heavy loads, with a maximum load capacity of up to 4,300 daN. They are suitable for industrial trolleys and equipment used in particularly demanding conditions, where maximum strength, stability and long-term reliability are required. The double electro-welded wheel configuration ensures high load-bearing capacity and optimal weight distribution, improving stability and safety even during intensive and continuous use.

Construction features of the twin electro-welded bracket

1) Plate: forged steel with integrated pin 2) Fork: deep-drawn legs electro-welded to the flange 3) Swivel actions: axial ball bearing and tapered roller bearing 4) Grease nipple 5) Anti-loosening system nut

Bracket suitable for applications with loads up to 4300 daN, even under heavy-duty conditions (mechanised towing and high speeds). Fixing plate made of thick forged steel with integrated pin, fork with thick legs shaped by means of deep-drawing process and welded to the flange; the axial and taper bearing guarantee excellent manoeuvrability also at full load and increase the side impact resistance of the bracket. Bracket grease nipple, locknut anti-loosening system, protective o-ring against dust and green powder painting guarantee its extremely long duration and simple maintenance.

Brake: adjustable rear

The top plate's longer side of fixed brackets is parallel to the axle of the wheel.

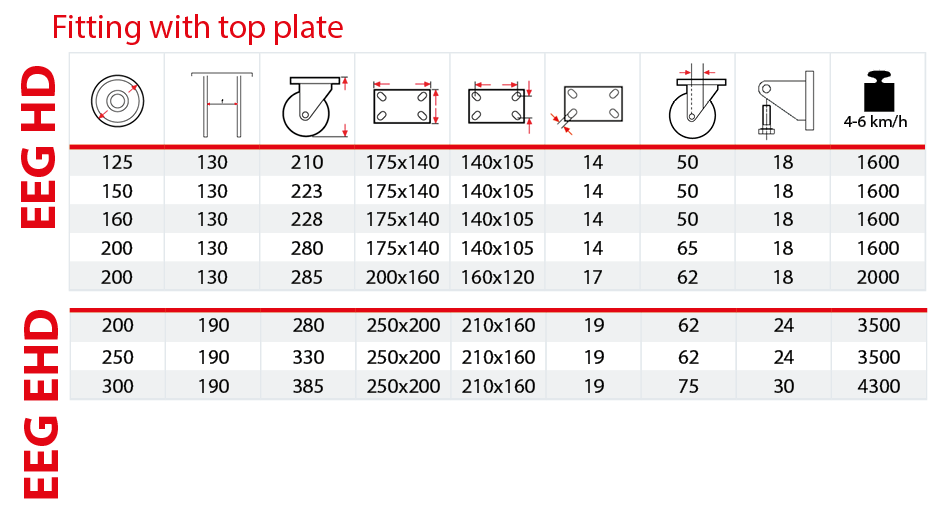

Fittings with wheels

SERIE 58GH	SERIE 62AL	SERIE 62GH	SERIE 63GH	SERIE 64	SERIE 68P	SERIE 72AL	SERIE 72G
